Best Water Doctor

HIMA 7 NHC

HIMA 7 NHC

HIMA 7 NHC

Model

  • HIMA 7 NHC ABS
  • HIMA 7 NHC Stainless Steel

Technologies

  • Ozone

Product information

Best Water Doctor is India's first and only unique water purifier in built with Dispenser which uses Ozone produced by corona discharge to disinfect micro organisms. It uses batch process to mix ozone with water. The uniqueness of the product lies in creating a compact ozone generator and venturi system to achieve highest levels of Ozone efficiency in water thereby providing rich, pure and safe drinking water.
Interested in this product?
Enquire now
  • rio-abs
  • rio-abs

Model

HIMA 7 NHC ABS

  • UV pLus - D7
  • UV pLus - D7

Model

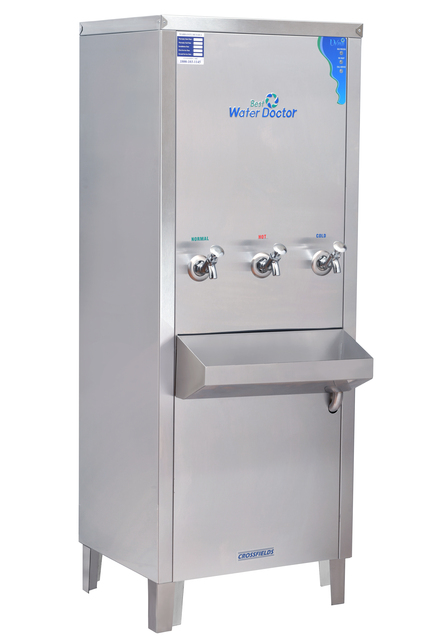

HIMA 7 NHC Stainless Steel

Technical Specifications

  • HIMA 7 NHC ABS
  • HIMA 7 NHC Stainless Steel
  • Power supply
    Power supply
    230 Volts
  • Processing Tank Capacity
    Processing Tank Capacity
    17 Ltrs
  • Storage tank Capacity / Ltrs (Normal, Hot & Cold)
    Storage tank Capacity / Ltrs (Normal, Hot & Cold)
    40 Ltrs Normal, 4 Ltrs Hot & 40 Ltrs Cold
  • Disinfection time
    Disinfection time
    6 Mins
  • No.of Faucets
    No.of Faucets
    3
  • Dimension in MM (LxWxH) Of Machine
    Dimension in MM (LxWxH) Of Machine
    670 X 720 X 1400
  • Purifier Wattage
    Purifier Wattage
    60 Watts
  • Heater Wattage
    Heater Wattage
    1000 Watts
  • Hot Water @ 55 Deg Celsius
    Hot Water @ 55 Deg Celsius
    40 Ltrs / Hr
  • Compressor Wattage
    Compressor Wattage
    245 Watts
  • Compressor Model
    Compressor Model
    THK - 1340 YCF
  • Compressor Make
    Compressor Make
    Tecumseh
  • Mains Cord
    Mains Cord
    15 Amps 1 No
  • Flow Rate
    Flow Rate
    125 Ltrs / Hr
  • Cold Water @ 18 Deg Celsius
    Cold Water @ 18 Deg Celsius
    40 Ltrs / Hr
  • Outer Body MOC
    Outer Body MOC
    ABS
  • Re - Purification of Stored Water
    Re - Purification of Stored Water
    Yes With Ozone (Above 80% Dissolution)
  • Controller Circuit
    Controller Circuit
    Microprocessor (Atmel 89C51)
  • Purification Process
    Purification Process
    Batch Process
  • Purification Method
    Purification Method
    Venturi
  • Power supply
    Power supply
    230 Volts
  • Processing Tank Capacity
    Processing Tank Capacity
    17 Ltrs
  • Storage tank Capacity / Ltrs (Normal, Hot & Cold)
    Storage tank Capacity / Ltrs (Normal, Hot & Cold)
    40 Ltrs Normal , 4 Ltrs Hot & 40 Ltrs Cold
  • Disinfection time
    Disinfection time
    6 Mints
  • No.of Faucets
    No.of Faucets
    3
  • Dimension in MM (LxWxH) Of Machine
    Dimension in MM (LxWxH) Of Machine
    600 X 525 X 1360
  • Purifier Wattage
    Purifier Wattage
    60 Watts
  • Heater Wattage
    Heater Wattage
    1000 Watts
  • Hot Water @ 55 Deg Celsius
    Hot Water @ 55 Deg Celsius
    40 Ltrs / Hr
  • Compressor Wattage
    Compressor Wattage
    245 Watts
  • Compressor Model
    Compressor Model
    THK - 1340 YCF
  • Compressor Make
    Compressor Make
    Tecumseh
  • Mains Cord
    Mains Cord
    15 Amps 1 No
  • Flow Rate
    Flow Rate
    125 Ltrs / Hr
  • Re - Purification of Stored Water
    Re - Purification of Stored Water
    Yes With Ozone (Above 80% Dissolution)
  • Controller Circuit
    Controller Circuit
    Microprocessor (Atmel 89C51)
  • Purification Process
    Purification Process
    Batch Process
  • Purification Method
    Purification Method
    Venturi
  • Cold Water @ 18 Deg Celsius
    Cold Water @ 18 Deg Celsius
    40 Ltrs / Hr
  • Outer Body MOC
    Outer Body MOC
    Stainless Steel - 304
