UVIOLET

UVIOLET 7

UVIOLET 7

UVIOLET 7

Model

  • UVIOLET 7 ABS
  • UVIOLET 7 Stainless Steel

Technologies

  • Ultrafiltration + Ultraviolet

Product information

UViolet (UF+ UV) is an exemplary product which combines the power of two technologies to achieve high levels of disinfection providing safe drinking water at all times. Our UViolet Water dispensers remove the above contaminants from any portable water supply and disinfect the water to provide ultra clear “ RICH PURE DRINKING WATER ”.
Interested in this product?
Enquire now
  • uviolet-NHC
  • uviolet-NHC

Model

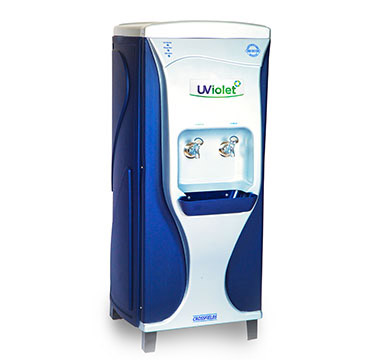

UVIOLET 7 ABS

  • uviolet-D5
  • UVoilet-Side
  • UVoilet - Side
  • uviolet-D5
  • UVoilet-Side
  • UVoilet - Side

Model

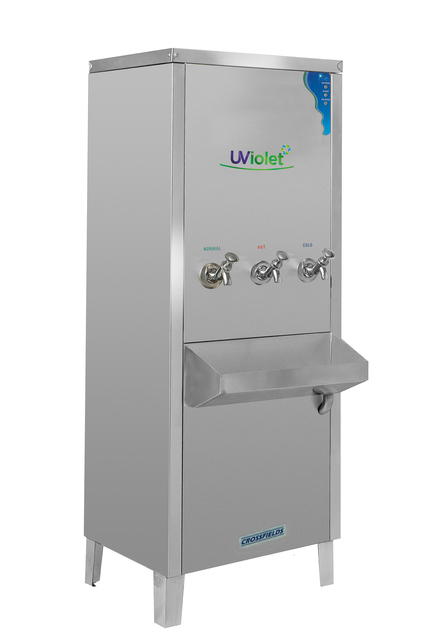

UVIOLET 7 Stainless Steel

Technical Specifications

  • UVIOLET 7 ABS
  • UVIOLET 7 Stainless Steel
  • Power Supply
    Power Supply
    230 Volts
  • Water Dispenser options
    Water Dispenser options
    Normal
  • Storage tank Capacity (Normal)
    Storage tank Capacity (Normal)
    80 Ltrs
  • Purifier Wattage
    Purifier Wattage
    50 Watts
  • Purification Time (in mins)
    Purification Time (in mins)
    Online
  • Flow Rate
    Flow Rate
    200 Ltrs / Hr
  • UV Bulb Power
    UV Bulb Power
    25 Watts
  • UV Bulb Make
    UV Bulb Make
    Philips
  • UV Chamber Dimension
    UV Chamber Dimension
    50 X 560 mm
  • UV Lamp Check
    UV Lamp Check
    LDR (Method)
  • UV Lamp Frequency of Check
    UV Lamp Frequency of Check
    Continuous During Purification Process
  • LDR By Pass
    LDR By Pass
    Micro Controller Check Prevents This
  • Micro controller Model
    Micro controller Model
    16F 887
  • UF Pore Size
    UF Pore Size
    0.01 Micron
  • Membranes
    Membranes
    10 inch Polysulfone
  • Filtration Type
    Filtration Type
    Dead - End
  • UF Membrane Area
    UF Membrane Area
    Higher than 0.3 m2
  • No.of Faucets
    No.of Faucets
    2 Nos
  • Machine Dimension (LxWxH)
    Machine Dimension (LxWxH)
    670 X 720 X 1400
  • Outer Body MOC
    Outer Body MOC
    ABS
  • No.of Power cords (With proper earth connection)
    No.of Power cords (With proper earth connection)
    3 Pin 5 Amps – 1 No
  • Power Supply
    Power Supply
    230 Volts
  • Water Dispenser options
    Water Dispenser options
    Normal
  • Storage tank Capacity (Normal)
    Storage tank Capacity (Normal)
    80 Ltrs
  • Purifier Wattage
    Purifier Wattage
    50 Watts
  • Purification Time (in mins)
    Purification Time (in mins)
    Online
  • Flow Rate
    Flow Rate
    200 Ltrs /Hr
  • UV Bulb Power
    UV Bulb Power
    25 Watts
  • UV Bulb Make
    UV Bulb Make
    Philips
  • UV Chamber Dimension
    UV Chamber Dimension
    50 x 560 mm
  • UV Lamp Check
    UV Lamp Check
    LDR (Method)
  • UV Lamp Frequency of Check
    UV Lamp Frequency of Check
    Continuous During Purification Process
  • LDR By Pass
    LDR By Pass
    Micro Controller Check Prevents This
  • Micro controller Model
    Micro controller Model
    16F 887
  • UF Pore Size
    UF Pore Size
    0.01 Micron
  • Membranes
    Membranes
    10 inch Polysulfone
  • Filtration Type
    Filtration Type
    Dead - End
  • UF Membrane Area
    UF Membrane Area
    Higher than 0.3 m2
  • No.of Faucets
    No.of Faucets
    2 Nos
  • Machine Dimension (LxWxH)
    Machine Dimension (LxWxH)
    600 X 525 X 1360
  • Outer Body MOC
    Outer Body MOC
    Stainless Steel 304
  • No.of Power cords (With proper earth connection)
    No.of Power cords (With proper earth connection)
    3 Pin 5 Amps – 1 No

Product Models
