UZONE

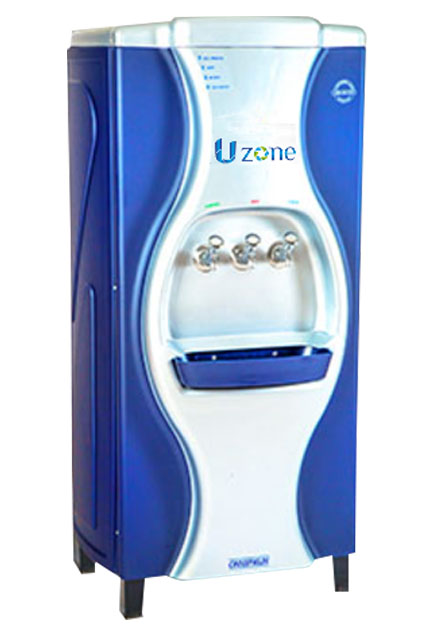

UZONE 5 NHC
UZONE 5 NHC
Model
- UZONE 5 NHC ABS
- UZONE 5 NHC Stainless Steel
Technologies
- Ultraviolet + Ozone
Product information
Uzone is an exemplary product that combines the power of two technologies to achieve high levels of disinfection providing safe drinking water at all times. Uzone is an online process whereby UV disinfects the incoming water and the stored water is injected with ozone at regular intervals to ensure no re-contamination.
Technical Specifications
- UVIOLET 5 NHC ABS
- UVIOLET 5 NHC Stainless Steel
-
Power supply
230 Volts
-
Water Dispenser options
Normal, Hot & Cold
-
Storage Tank Capacity (Normal)
15 Ltrs
-
Storage Tank Capacity (Hot)
4 Ltrs
-
Storage tank Capacity (Cold)
15 Ltrs
-
Purifier Wattage
65 Watts
-
Purification Time (in mins)
Online
-
Flow Rate
100 Ltrs /Hr
-
UV Bulb Power
20 Watts
-
UV Bulb Make
Philips
-
UV Chamber Dimension
50 X 400 mm
-
UV Lamp Check
LDR (Method)
-
UV Lamp Frequency of Check
Continuous During Purification Process
-
Re - Processing Method
Ozone
-
Ozone Generator Dimension
160 X 22 mm
-
Ozone Diffusion Method
Pump & Venturi (Which Can give more than 85% Ozone Dissolution)
-
LDR By Pass
Micro Controller Check Prevents This
-
Micro controller Model
16F 887
-
Heater Wattage
1000 Watts
-
Compressor model
THK 1340 YCF / HYJ 40 YCA
-
Compressor Make
Tecumseh / Hyaei
-
No.of Faucets
3 Nos
-
Machine Dimension (LxWxH)
580 X 595 X 1280
-
Outer Body MOC
ABS
-
No.of Power cords (With proper earth connection)
3 Pin 5 Amps – 1 No
-
Power supply
230 Volts
-
Water Dispenser options
Normal, Hot & Cold
-
Storage tank Capacity / Ltrs (Normal)
15 Ltrs
-
Storage tank Capacity / Ltrs (Hot)
4 Ltrs
-
Storage tank Capacity / Ltrs (Cold)
15 Ltrs
-
Purifier Wattage
65 Watts
-
Purification Time (in mins)
Online
-
Flow Rate
100 Ltrs /Hr
-
UV Bulb Power
20 Watts
-
UV Bulb Make
Philips
-
UV Chamber Dimension
50 X 400 mm
-
UV Lamp Check
LDR (Method)
-
UV Lamp Frequency of Check
Continuous During Purification Process
-
Re - Processing Method
Ozone
-
Ozone Generator Dimension
160 X 22 mm
-
Ozone Diffusion Method
Pump & Venturi (Which Can give more than 85% Ozone Dissolution)
-
LDR By Pass
Micro Controller Check Prevents This
-
Micro controller Model
16F 887
-
Heater Wattage
1000 Watts
-
Compressor model
THK 1340 YCF / HYJ 40 YCA
-
Compressor Make
Tecumseh / Hyaei
-
No.of Faucets
3 Nos
-
Machine Dimension (LxWxH)
445 X 385 X 1330
-
Outer Body MOC
Stainless Steel - 304
-
No.of Power cords (With proper earth connection)
3 Pin 5 Amps – 1 No
-
Dump System
Every 72 Hrs (If Machine is not used, to drain Stored Water)
Product Models
-
UZONE 5
UZONE 5
Flow Rate : 100 Ltrs /Hr
Capacity : 35 Ltrs
Dispensing Options : Normal
-
UZONE 5 NH
UZONE 5 NH
Flow Rate : 100 Ltrs /Hr
Capacity : 35 Ltrs Normal & 4 Ltrs Hot
Dispensing Options : Normal & Hot
-
UZONE 5 NC
UZONE 5 NC
Flow Rate : 100 Ltrs /Hr
Capacity : 15 Ltrs Normal & 15 Ltrs Cold
Dispensing Options : Normal & Cold
-
UZONE 5 NHC
UZONE 5 NHC
Flow Rate : 100 Ltrs /Hr
Capacity : 15 Ltrs Normal, 4 Ltrs Hot & 15 Ltrs Cold
Dispensing Options : Normal, Hot & Cold
-
UZONE 6 NC
UZONE 6 NC
Flow Rate : 100 Ltrs /Hr
Capacity : 25 Ltrs Normal & 25 Ltrs Cold
Dispensing Options : Normal & Cold
-
UZONE 6 NHC
UZONE 6 NHC
Flow Rate : 100 Ltrs /Hr
Capacity : 25 Ltrs Normal, 4 Ltrs Hot & 25 Ltrs Cold
Dispensing Options : Normal , Hot & Cold
-
UZONE 7
UZONE 7
Flow Rate : 200 Ltrs /Hr
Capacity : 80 Ltrs
Dispensing Options : Normal
-
UZONE 7 NH
UZONE 7 NH
Flow Rate : 200 Ltrs /Hr
Capacity : 40 Ltrs Normal & 40 Ltrs Hot
Dispensing Options : Normal & Hot
-
UZONE 7 NC
UZONE 7 NC
Flow Rate : 200 Ltrs /Hr
Capacity : 40 Ltrs Normal & 40 Ltrs Cold
Dispensing Options : Normal & Cold
-
UZONE 7 NHC
UZONE 7 NHC
Flow Rate : 200 Ltrs /Hr
Capacity : 40 Ltrs Normal, 4 Ltrs Hot & 40 Ltrs Cold
Dispensing Options : Normal , Hot & Cold
